Implementing A Stylized UISegmentedControl

I’m currently in the process of implementing a new UI theme for the iPad application that I’m working on. Several of the mockups sent over by the designer include a stylized UISegmented control:

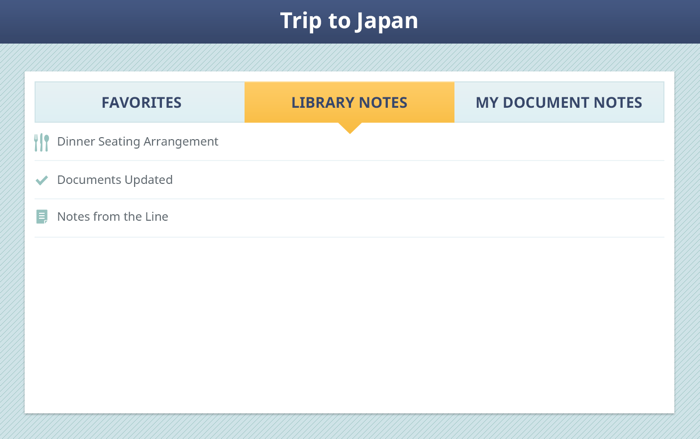

UISegmented Control Mockup

The custom green and gold backgrounds are simple to implement if you’re targeting iOS 5 or newer. Starting in iOS 5, Apple implemented several new methods to customize the appearance of UISegmentedControls. You can a list of the appearance methods in Apple’s Documentation.

The tricky part was how to display the gold arrow indicator below the selected segment. I needed to be able to use this UI style in several places within the app so I couldn’t simply include the arrow within a fixed width background image. The solution I came up with was to add a method that fires when the selected segment index changes. In the method I move the arrow graphic from the previously selected segment to the new one and then center it.

- (void)selectedSegmentChanged:(id)sender
{
    // Remove the arrow from its current view
    [self.segmentArrow removeFromSuperview];

    // The segment items are added in reverse order of their index so we need to flip the selected index
    NSInteger viewIndex = self.numberOfSegments - 1 - self.selectedSegmentIndex;

    // Get a reference to the segment and position the arrow outside of its frame
    UIView *segmentView = [self.subviews objectAtIndex:viewIndex];
    [segmentView addSubview:self.segmentArrow];
    self.segmentArrow.center = CGPointMake(segmentView.frame.size.width / 2, kStyledSegmentedControlHeight + self.segmentArrow.frame.size.height / 2);
}

One thing to note here is that when you get a reference to an individual segment from the UISegmentedControl’s subviews is that the segments are stored in reverse order.

I encapsulated all of the UI customizations into a subclass of UISegmentedControl so that I could easily reuse them across my application. I’ve put together a simple example project on Github to demonstrate how to use the subclass: KFSegmentedControlExample

Hopefully someone else will find this useful in their own project!
